Moterra Neo Carbon 1

Bosch's powerful new Performance CX drive unit and a long-lasting PowerTube battery integrate cleanly into Moterra's burly carbon frame. The power and range to ride anything — in a beautiful package.







Drivetrain

• Chain

  SRAM XX1-Eagle Rainbow, 12-speed
• Crank

  FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
• Rear Cogs

  SRAM XX1-Eagle Rainbow, 10-52, 12-speed
• Rear Derailleur

  SRAM X01 Eagle
• Shifters

  SRAM GX Eagle, single click, 12-speed

Frameset

• Fork

  RockShox Zeb Ultimate, Charger 2.1 RC2, 160mm, DebonAir, 15x110, 51mm offset
• Frame

  160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
• Headset

  Integrated Sealed Bearing, Tapered
• Rear Shock

  RockShox Deluxe Select+ RT, DebonAir

Wheels

• Front Hub

  Formula 15x110
• Front Tire

  Maxxis Assegai, 27.5/29 x 2.6", dual compount, EXO, tubeless ready
• Rear Hub

  SRAM MTH 700, 12 x 148, XD Driver
• Rear Tire

  Maxxis DHR II, 27.5/29 x 2.6", 3C, EXO+, tubeless ready
• Rims

  WTB KOM Trail i30 TCS, 32h, tubeless ready
• Spokes

  DT Swiss Champion
• Tire Size

  2.6
• Tires

  (F) Maxxis Assegai, 27.5/29 x 2.6", dual compound, EXO, tubeless ready / (R) Maxxis DHR II, 27.5/29 x 2.6", 3C, EXO+, tubeless ready
• Wheel Size

  29

Brakes

• Brake Levers

  Magura MT7 Trail HC hydraulic disc
• Brakes

  Magura MT7 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors

Components

• Grips

  Fabric FunGuy
• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Saddle

  Fabric Scoop Shallow Elite, cro-mo rails
• Seatpost

  Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L/XL)
• Stem

  Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°

E-System

• E-System Battery

  Bosch PowerTube 625Wh
• E-System Charger

  Bosch 4A
• E-System Display

  Bosch Kiox

Extra

• Extra 1

  Supernova Mini 2 Pro light

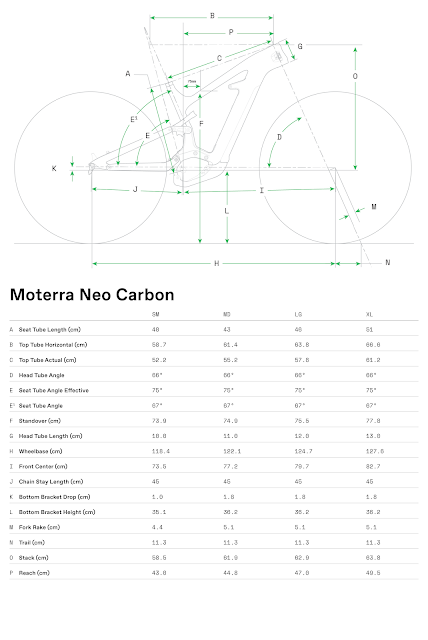

  Geometry
